Description
Benefits of using Fuel Sensor
The fuel sensor helps detect and prevent fuel theft by providing accurate data on real -time fuel level.
This sensor improves fuel efficiency by tracking consumption patterns and reducing the waste.
The fuel sensor supports better fleet management with detailed fuel use reports.
It reduces operating costs by identifying unnecessary passive or overweight.
The fuel sensor ensures unusual fuel use or leaks and ensures timely maintenance.

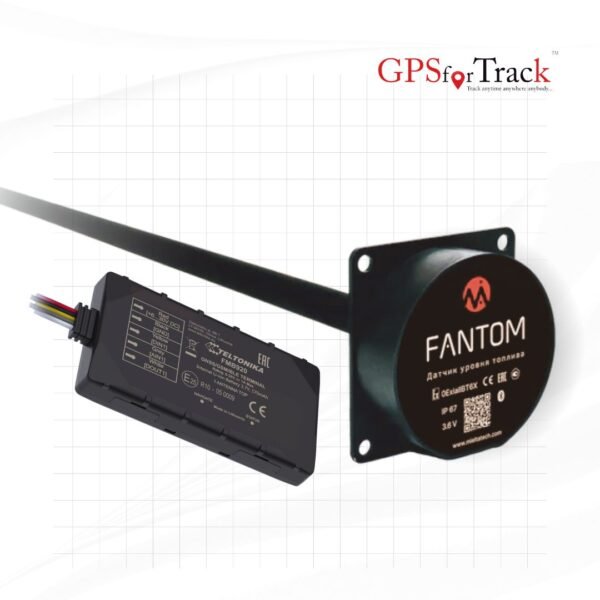

Fuel Sensor Description
| MODULE FGE-99.5 | |
| Name | FMB920 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 6 – 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
| Power consumption | At 12V < 2 mA (Ultra Deep Sleep) At 12V < 4 mA (Deep Sleep) At 12V < 5 mA (Online Sleep) At 12V < 6 mA (GPS Sleep) At 12V < 25 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner |
| INTERFACE | |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 79 x 43 x 12 mm (L x W x H) |
| Weight | 54 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, MTBF, REACH |
Description Sensor
- Compatibility with different fuels;
- Self-diagnostic system;
- Built-in shielding sensor;
- Continuous recording of data in black box;
- Determination of vehicle inclination;
- Explosion-proof certificate;
- Guarantee of 3 years
Technical characteristics
| POWER SUPPLY | Battery Li-SOCL2 3.6 В, 2.7 А*ч |
| MEASUREMENT PERIOD | from 1 to 10 sec |
| ADVERTISING PERIOD | from 1 to 10 sec |
| AVERAGING INTERVAL | from 1 to 60 |
| RELATIVE MEASUREMENT ERROR | No more than 1% |
| DATA TRANSFER FORMAT | 0 – Mielta 1 – analog № 1 |
| WIRELESS TRANSMITTER | Bluetooth Low Energy 5.0, 2.4 GHz |
| TRANSMITTER POWER | Adjustable, up to 8 dBm |
| TILT ANGLE MEASURER | Inbuilt accelerometer, +/- 1G α°=arcsin(Z/127) |
| TEMPERATURE MEASURER | inbuilt, +/- 2°С |
| INBUILT MEMORY | 4 Мb |
| WIRELESS SOFTWARE UPDATE AND CONFIGURATION |
YES |
| INGRESS PROTECTION | IP67 |
| EXPLOSION PROTECTION MARKING | 0ExiaIIBT6X |
| OPERATING TEMPERATURE | from – 40 to +85 °C |
| LIFETIME | 7 years |
| MEASUREMENT LENGTH | 990 мм /1490мм /1990мм |
| HOUSING DIMENSIONS | 80х80х25 мм |
| SENSOR DIMENSIONS | 80х80х1015 мм |
* T&C Apply. We give “Anti-Theft Alarm” feature instead of Engine Cut in Push-Button & Automatic Vehicles. + Compatible with the Device
