Description

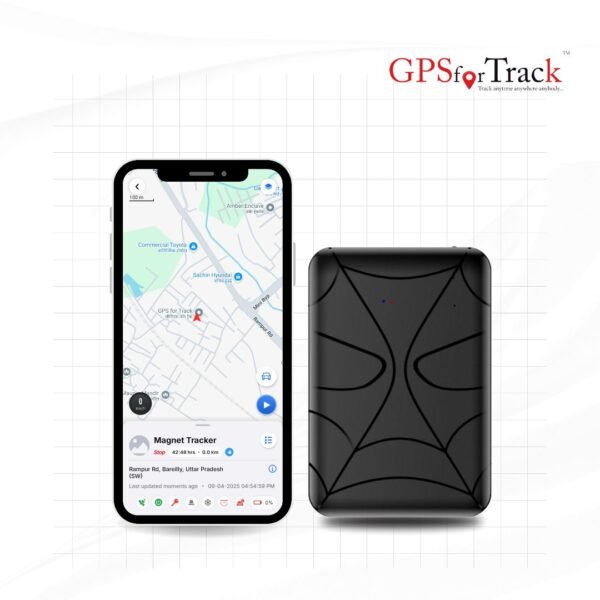

Asset GPS Tracker

Application

2G+4G

• 2G: 850/900/1800/1900MHz

• 4G FDD: B1/B3/B5/B7/B8/B20

• 4G TDD: B38/B39/B40/B41

• Storage of 3000 GPS data entries

RMSPE < S5, PPE < 20

• LTE-TDD: Class 3 (23dBm + 3dB)

• LTE-FDD: Class 3 (23dBm + 3dB)

• FDD-LTE < -96dBm

• TDD-LTE < -96dBm

Accuracy: +0.1ppm
Color: Black

Satellite Systems

• BDS B1, 1561.098MHz

• GPS L1, 1875.42MHz

• 66 channels

Position Accuracy: <5 meters
Acquisition Sensitivity: -163dBm
Tracking Sensitivity: -146dBm

• Avg. hot start < 3 sec

• Avg. cold start < 32 sec

Power:

• 3.7V/70mA

• Operating Temperature: -20°C ~ 70°C

• Battery: 10000 mAh / 3.7V Li-Polymer

Charging:

• Input: 5VDC

• Dimensions: 115 x 78 x 25 mm
